20 December 2023

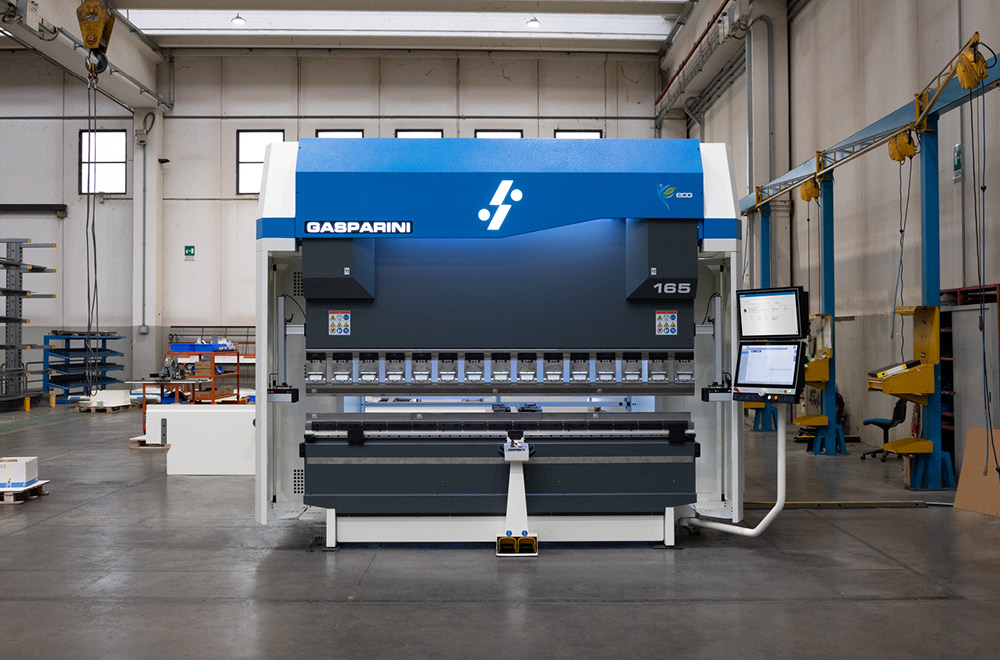

X-Press 165/3000 for CRD Lamiere

CRD is a leader in the processing of sheet metal such as iron, steel, stainless steel, aluminium and galvanised sheet metal and specialises in the production of steel and stainless steel commercial furniture and furnishings for the retail trade. For this customer we built a hydraulic press brake with Design Next, a capacity of 165 tonnes and a table length of 3100 mm. The open-height is 500 mm, with a stroke of 200 mm.

This press brake is equipped with the Gasparini Adaptive Crowning System and the E-Reflex Deformation Compensation System. Together, these two systems provide excellent results in terms of quality, precision and repeatability of the parts to be bent.

The CNC is the Delem DA-66S, with Delem Profile Lite SL 2D offline software.

DA-66S features:

  • High-resolution 24″ touch screen (16:9)
  • 3D visualisation of bending sequence
  • 2D programming
  • DXF file import
  • 3D visualisation of offline programme
  • Offline software included: Profile-SL
  • Industry 4.0 package

Also features interface with third-party offline software, and 3D visualisation on Delem DA-66T/S.
This press brake is designed with the provision for Tele-Link remote assistance and Industry 4.0 package.

As far as the clamping system is concerned, for the upper part of the machine, the tool adapter 200 mm high Toolever self-aligning lever clamping system was chosen. The lower clamping is of the manual type.

The backgauge has 5 CNC-controlled axes (X-R-Z1-Z2-X6), and is equipped with two retractile back supports and an additional stop.
Thetwo retractile back supports are equipped with polyethylene profiles and allow even the thinnest sheets to be supported without scratching their surfaces.
Thanks to the combination of these elements, the bender achieves the highest level of precision and ergonomics during the bending process.

This press brake is equipped with the Iris Plus angle control and safety system.

This system uses a two-dimensional matrix sensor to read the entire area around the punch tip.
With an optical resolution of only 2 mm, it allows the speed change point to be set 0 mm from the sheet metal. The cycle time is greatly reduced: up to 3 seconds saved per bend. The maximum distance between systems is 15 m.

In addition to the main systems and accessories, this folder features:

  • ECO energy-saving package
  • 2 sliding front supports
  • Lazer Safe sliding foot pedal
  • LED work area lighting
  • Additional customised control panel
