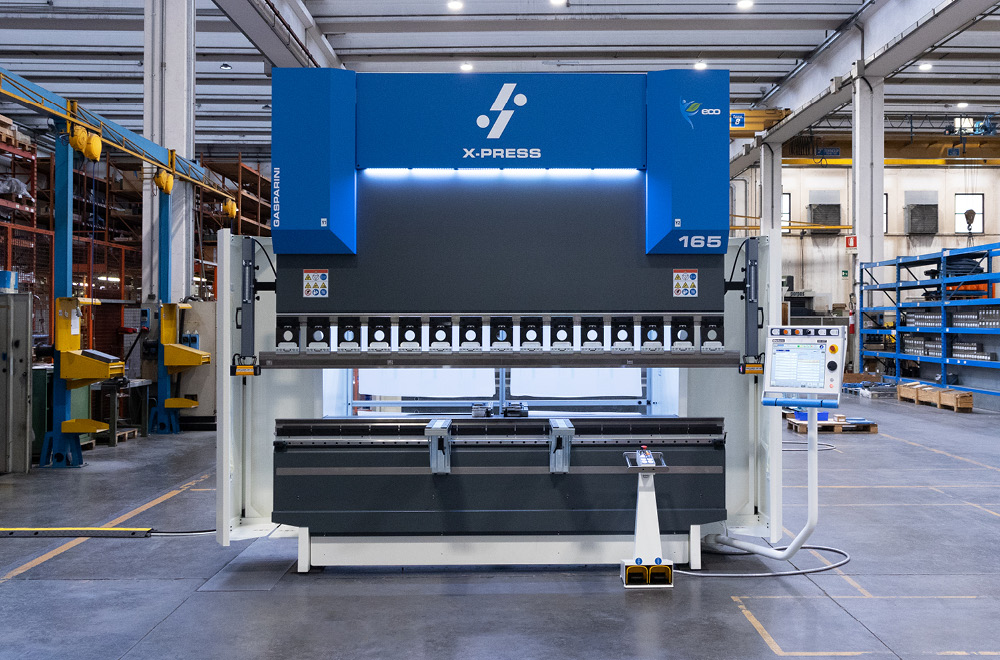

The main technical features of the press brake
This press brake features the Gasparini Adaptive Crowning System and the E-Reflex Deformation Compensation System. The combination of these two systems allows excellent results in terms of quality, precision and repeatability of the parts to be bent.
The customer chose the Gasparini AirSlide upper pneumatic clamping system with a height of 200 mm for European-type tools. This self-aligning system allows the vertical assembly and disassembly of press brake tools in complete safety. The automatic alignment function positions and secures the tools, reducing set-up times and increasing productivity.
The bottom clamping is also pneumatic.
Choosing remote assistance: all the advantages
This machine was equipped with the Tele-Link remote assistance function and Industry 4.0 package. Its CNC technology is of the Delem DA-69T type, with Delem Profile-T 3D offline software. An additional USB dongle was also provided.
In terms of backgauge, the press brake is designed with a 5-axis (X-R-Z1-Z2-X6) CNC-controlled system, two retractile back supports, and an additional stop.
The two retractile back supports are equipped with polyethylene profiles and allow even the thinnest sheets to be supported without scratching the surfaces.
The combination of these elements allows the press brake to achieve the highest level of precision and ergonomics during the bending process.
In terms of backgauge, the press brake is designed with a 5-axis (X-R-Z1-Z2-X6) CNC-controlled system, two retractile back supports, and an additional stop.
The two retractile back supports are equipped with polyethylene profiles and allow even the thinnest sheets to be supported without scratching the surfaces.
The combination of these elements allows the press brake to achieve the highest level of precision and ergonomics during the bending process.
The choice of safety system
The safety system installed is the DSP-AP Laser, which offers a lowered speed change point and reduced cycle time. The system generates a visible laser beam that follows EN12622 standards and protects the operator from any risk of crushing between punch and die.
Customisation of the press brake requested by the company
In addition, the customer decided to add:
- LED lighting of the working area
- standard foot pedal
- 2 sliding front supports arms
- ECO energy-saving package
